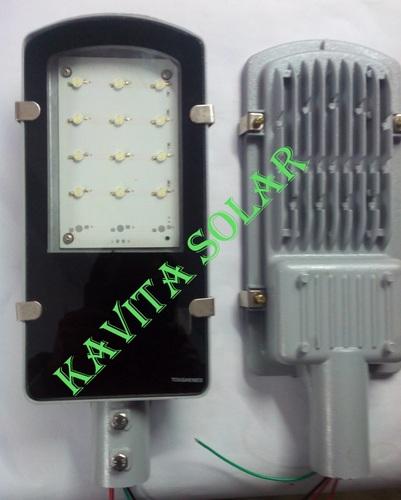

Aluminum Body Solar Led Street Light

Key Features:

Stand Alone System

"Fit and forget" device

Safe, efficient and reliable

Easy Installation

Free from messy cable

High refractive Acrylic

Maximum light coverage

Reliable MOSFET based

Electronics Appealing Aesthetic of Luminaries

As per MNRE Specification

Automatic dawn to dusk operation

Temperature Compensated Battery charging

PWM MOSFET based solar charge

controller Timer-Optional

KAVITA SOLAR offers a wide range of Solar PV LED Street Light with standard and custom built versions. The Standard model generally conforms to MNRE specifications

General Specifications and Features:

Housing material : Aluminum

Chimney Material : Acrylic/Polycarbonate

SPV Module : High efficiency silicon cell based SPV module

Battery 12V @ C-10 Low maintenance tubular lead acid battery

LED’S Ultra Bright High Power LED’S

Battery Box : ABS/MS

Module mounting frame : Mild steel galvanized

Pole : Mild steel galvanized (15feet)/ as per requirement

Provisions:

Fuse LED indications :

Battery charging in process

Battery Charged (Charging disconnect)

Battery deep discharge (Load disconnect) Solder free installation

Protection options :

Battery Reverse polarity

Battery deep discharge

Battery Overcharge- 100%

short circuit- Surge/lightning

Electrical Specification :

Load disconnect battery voltage 11 ± 0.2 volts or as required

Load reconnect battery voltage 12.5 ± 0.2 volts or as required

Constant Charging Voltage 14.5 ± 0.2 volts or as required

Idle current consumption Less than 5ma

Overall efficiency (Including charge controller) : 85%

Light Output 130 lumens/W (Nominal)

Variants :

Model No. LED’S POWER Battery Capacity C/20 rate Module

SUN- LSLS1 6 7.2W 12V-40Ah 40Wp

SUN- LSLS2 9 10.8W 12V-75Ah 60Wp

SUN- LSLS3 12 14.4W 12V-100Ah 100Wp

SUN- LSLS4 18 21.6W 12V-150Ah 150Wp

SUN- LSLS5 24 28.8W 12V-200Ah 200Wp
