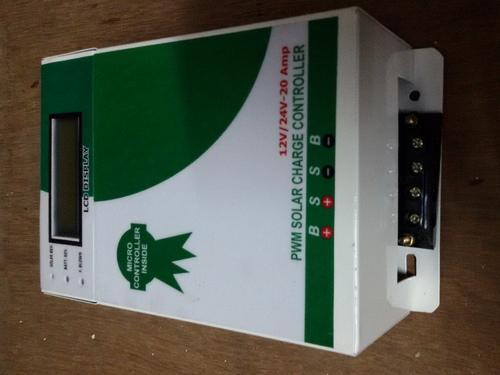

Solar Charge Controller 12/24v-20a WITH LCD

Kavita solar Offer a wide range of Electronic SPV Charge Controllers /Regulators

with standard and custom built versions. The Standard model generally conforms to MNRE specifications.

Key Features :

• Affordable

• Safe, efficient and reliable

• Easy to install

• PWM Charging

• Temperature Compensation

• As per MNRE Specification

• Micro Controller Based High efficiency electronics

General Specifications and Features:

Housing material

MS

Provisions

Fuse

LCD indications Battery charging in process

Battery Charged (Charging disconnect)

Battery deep discharge (Load disconnect)

Battery Voltage

Solar Voltage

Charging Current

LED indications

Solar Reverse

Battery Reverse

Protection options :

Battery Reverse polarity

Battery deep discharge

Battery Overcharge

100% short circuit

Surge/lightning

Electrical Specification:

For Solar Charge Controller 24V-20A

Load disconnect battery voltage 22 ± 0.2 volts or as required

Load reconnect battery voltage 24.5 ± 0.2 volts or as required

Constant Charging voltage 28.5 ± 0.2 volts or as required

Idle current consumption Less than 5ma

For Solar Charge Controller 12V-20A

Load disconnect battery voltage 11 ± 0.2 volts or as required

Reconnect battery voltage 12.5 ± 0.2 volts or as required

Constant Charging voltage 14.5 ± 0.2 volts or as required

Idle current consumption Less than 5ma

Additional Information:

Minimum Order Quantity: 25 Piece(s)
