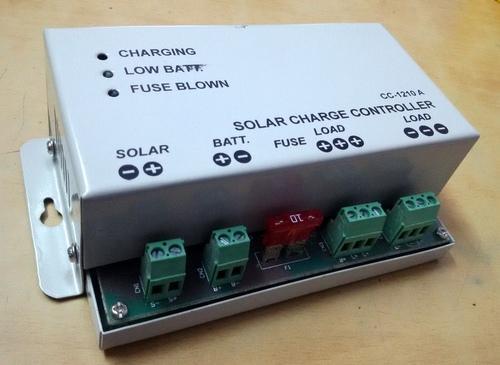

Solar Charge Controller 12V-10A

12V-10A Solar Charge Controller Manufacturer

Key Features :

• Affordable

• Safe, efficient and reliable

• Easy to install

• PWM Charging

• Temperature Compensation

• Dusk to Down Feature-(Optional)

• As per MNRE Specification

Kavita solar Offer a wide range of Electronic SPV Charge Controllers / Regulators with standard and custom built versions. The Standard model generally conforms to MNRE specifications.

General Specifications and Features:

Housing material : ABS/MS (as per Requirement)

Provisions

Fuse

DC LOAD

LED indications

Battery charging in process

Battery Charged (Charging disconnect)

Battery deep discharge (Load disconnect)

Fuse Blown

Protection options :

Battery Reverse polarity

Battery deep discharge

Battery Overcharge

100% short circuit

Surge/lightning

Electrical Specification:

For Solar Charge Controller 12V-10A

Load disconnect battery voltage 11 ± 0.2 volts or as required

Load reconnect battery voltage 12.5 ± 0.2 volts or as required

Constant Charging Voltage 14.5 ± 0.2 volts or as required

Idle current consumption Less than 5ma

Additional Information:

Minimum Order Quantity: 50 Piece
