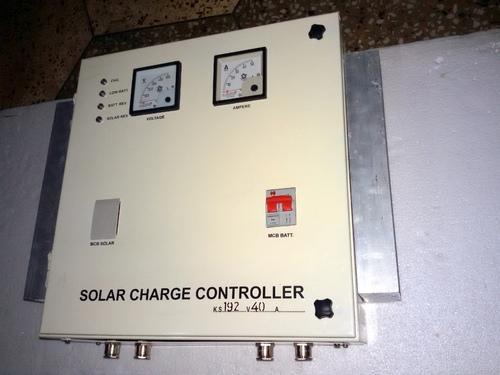

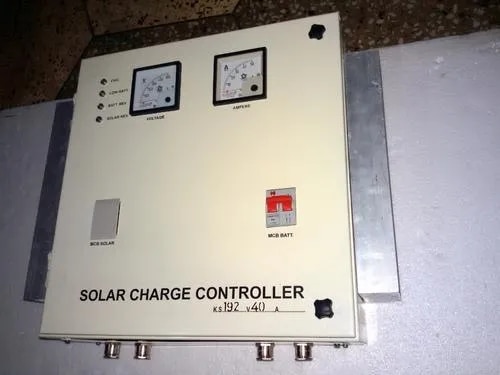

Solar Charge Controller 192V-40A

Kavita solar Offer a wide range of Electronic SPV Charge Controllers / Regulators with standard and custom built versions. The Standard model generally conforms to MNRE specifications.

Electrical Specification:

For Solar Charge Controller 192V-40A

HIGH VOLTAGE CUT OFF - 232V

Constant Charging Voltage - 224V ± 0.2 volts or as required

Key Features :

• Affordable

• Safe, efficient and reliable

• Easy to install

• PWM Charging

• Temperature Compensation

• As per RAILWAY Specification• Micro Controller Based High efficiency electronics

General Specifications and Features:-

Housing material : MS

Provisions

MCB

ANALOG METER (VOLTAGE & AMPERE)

DIGITAL PANEL METER

DUAL CHANNAL

LED indications:-

Battery charging in process

Battery Charged (Charging disconnect)

Battery deep discharge (Load disconnect)

Battery Reverse

Solar Reverse

Output Voltage

Output Current

Protection options :

Battery Reverse polarity

Battery Overcharge

100% short circuit

Surge/lightning
