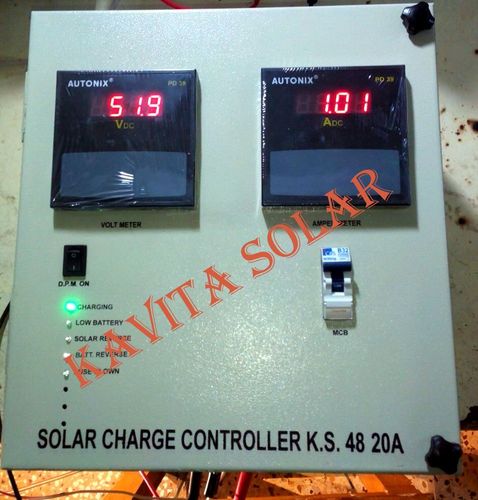

Solar Charge Controller 48V-20A

Solar Charge Controller 48V-20A Manufacturer

Kavita solar Offer a wide range of Electronic SPV Charge Controllers / Regulators with standard and custom built versions. The Standard modelgenerally conforms to MNRE specifications.

Key Features :

• Affordable

• Safe, efficient and reliable

• Easy to install

• PWM Charging

• Temperature Compensation

• Dusk to Down Feature-(Optional)

• As per MNRE Specification

• Micro Controller Based High efficiency electronics

General Specifications and Features:

Housing material : MS

Provisions

Fuse

MCB

DIGITAL PANEL METER

LED indications

Battery charging in process

Battery Charged (Charging disconnect)

Battery deep discharge (Load disconnect)

Fuse Blown

BATTERY REVERSE

SOLAR REVERSE

VOLTAGE & CURRENT

Protection options :

Battery Reverse polarity

Battery deep discharge

Battery Overcharge

100% short circuit

Surge/lightning

Electrical Specification:

For Solar Charge Controller 48V-20A

Load disconnect battery voltage 44 ± 0.2 volts or as required

Load reconnect battery voltage 49 ± 0.2 volts or as required

Constant Charging voltage 56.5 ± 0.2 volts or as required

Idle current consumption Less than 5ma
