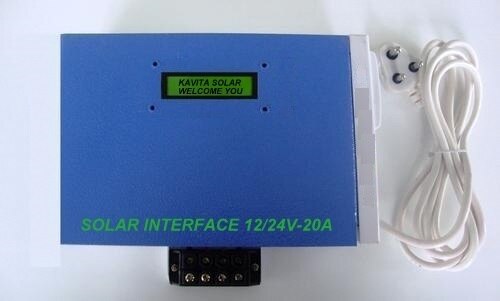

Solar Interface 12/24V-20A

Product Details:

Application Solar System Controller

Power 600Wp

Rated Voltage 12/24v

Solar Array Single Array

Kavita solar Offer a SOLAR INTERFACE. Being an-add on to the existing domestic inverter, this offers a very cost efficient way of converting an existing domestic inverter into Solar Power Conditioning Unit. Interface can automatically sense 12V/24V system and work accordingly.

Key Features:

· PWM Charging

· Temperature Compensation

· To promote Solar Energy and thus contributing to the environment.

· To make Solar Energy more affordable.

· To develop and prepare an easy to install/maintain system that works with existing domestic inverter/storage batteries

· To monitor battery charge levels at all times

· To give preference to Solar PV charging

· This helps in reducing AC grid electricity units consumed by the customer.

· Micro Controller Based High efficiency electronics

LCD indications:

· Battery charging in process

· Battery Charged

· Battery Low

· Mains Voltage

· Mains Charging On/Off

· Solar Voltage

· Charging Current

LED indications:

· Solar Reverse

· Battery Reverse

Protection options:

· Battery Reverse polarity

· Battery deep discharge

· Battery Overcharge

· 100% short circuit

· Surge/lightning

Electrical Specification:

For Solar Charge Controller 12/24V-20A

· Load disconnect battery voltage 11/22 ± 0.2 volts or as required

· Load reconnect battery voltage 12.5/24.5 ± 0.2 volts or as required

· Constant Charging voltage 14.5/29 ± 0.2 volts or as required

· Mains Charging Cut Off 14.5/29 ± 0.2 volts or as required

· Mains Charging Reconnect 26/24.4/23.6/22.8 ± 0.2 volts or as required for 24V

· Mains Charging Reconnect 13/12.2/11.8/11.4 ± 0.2 volts or as required for 12v
