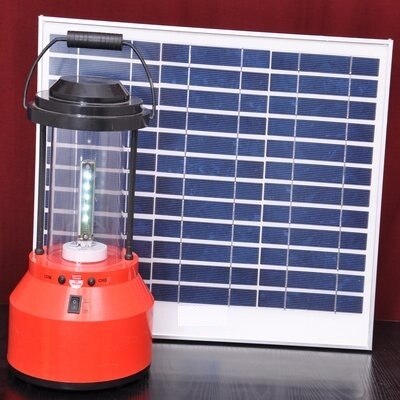

Solar LED Lantern 12V-5W

12V-5W Solar LED Lantern Manufacturer

KAVITA SOLAR offers a wide range of Solar LED Lanterns with standard and custom built versions. The Standard model generally conforms to MNRE specifications.

Key Features :

Safe, efficient and reliable

Affordable

Easy to install

No fumes or No smoke

Maximum light coverage

High efficiency electronics

Aesthetically designed portable light

Available in different Models

A/c charging – optional

Mobile Charging- optional

As per MNRE Specification

General Specifications and Features:

Housing material ABS

Chimney Material Acrylic, Polycarbonate or Shane

LED SMD LED

SPV Module High efficiency silicon cell based SPV module

Battery 12V-7.2Ah @ C-20 SMF lead acid battery of Absorbed Electrolyte type

Provisions:

On-Off Switch

Fuse

Mobile Charging Socket

LED indications

Battery charging in process

Battery Charged (Charging disconnect)

Battery deep discharge (Load disconnect)

Protections :

Battery deep discharge

Battery over charge

Battery/Solar Reverse polarity

Electrical Specification:

For Charge Controller in LED Lantern

Load disconnect battery voltage 11 ± 0.2 volts or as required

Load reconnect battery voltage 12.5 ± 0.2 volts or as required

Constant Charging Voltage 14.5 ± 0.2 volts or as required

Idle current consumption Less than 1ma

Overall efficiency

(Including charge controller) : 85%

Light Output

112 lumens/Watt
