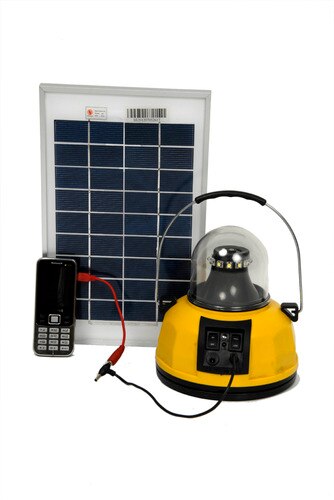

Solar street LED Lantern 6V-3W

Solar LED Lantern 6V-3W Manufacturer

KAVITA SOLAR offers a wide range of Solar LED Lanterns with standard and custom built versions. Portable Solar LED Lantern for Rural & urban Homes, Dhabas, Shops, Farms and Clinics.

Key Features :

Safe, efficient and reliable

Affordable

Easy to install

Maintenance - Free

No fumes or No smoke

Maximum light coverage

User selectable high/low intensity

Long lasting High Power LED'S

Micro controller Based High efficiency electronics

Aesthetically designed portable light

Available in different Models

A/c charging – optional

Mobile Charging

General Specifications and Features:

Housing materiaL : ABS

Chimney Material : Acrylic/Polycarbonate

LED : Ultra bright high power LED’S

SPV Module : High efficiency silicon cell based SPV module

Battery : 6V-4.5Ah @ C-20 SMF lead acid battery of Absorbed Electrolyte type

Provisions:

On-Off Switch

High/Low Switch

Fuse

Plug in socket for the connection of PV module to the lantern for charging

Solder free installation

LED indications:

Battery charging in process

Battery Charged (Charging disconnect)

Battery deep discharge (Load disconnect)

Protections :

Battery deep discharge

Battery over charge

Battery/Solar Reverse polarity

Electrical Specification:

For Charge Controller in 6V LED Lantern

Load disconnect battery voltage : 5.5 ± 0.2 volts or as required

Load reconnect battery voltage : 6.3 ± 0.2 volts or as required

Upper charging disconect Voltage : 7.4 ± 0.2 volts or as required

Idle current consumption : Less than 5ma

Overall efficiency : 85%

Light Output : 112 lumens/W (Nominal)
