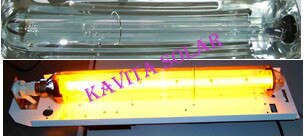

Sox Lamp 36w

Sox Lamp 36w Manufacturers

Key Features:

• Stand Alone System

• "Fit and forget" device

• Safe, efficient and reliable

• Easy Installation

• Free from messy cable

• High refractive Acrylic

• Maximum light coverage

• Reliable MOSFET based

• Electronics Appealing Aesthetic of Luminaries

• Automatic dawn to dusk operation

• Temperature Compensated Battery charging

• PWM MOSFET based solar charge

• controller Timer-Optional

KAVITA SOLAR offers a wide range of Solar PV SOX LAMP with standard and custom built versions. The Standard model generally specifications

General Specifications and Features:

• Housing material : Aluminum

• Chimney Material : Acrylic/Polycarbonate

• SPV Module : High efficiency silicon cell based SPV module

• Battery 12V @ C-10 Low maintenance tubular lead acid battery

• Lamp : Suitble for the lamp 36W,Input Watts:36W,Rated Voltage:12V,Line Current: 3A

• Battery Box : ABS/MS

• Module mounting frame : Mild steel galvanized

• Pole : Mild steel galvanized (15feet)/ as per requirement

Provisions:

Fuse LED indications :

• Battery charging in process

• Battery Charged (Charging disconnect)

• Battery deep discharge (Load disconnect) Solder free installation

Protection options :

• Battery Reverse polarity

• Battery deep discharge

• Battery Overcharge- 100%

• short circuit- Surge/lightning

Electrical Specification :

• Load disconnect battery voltage 11 ± 0.2 volts or as required

• Load reconnect battery voltage 12.5 ± 0.2 volts or as required

• Constant Charging Voltage 14.5 ± 0.2 volts or as required

• Idle current consumption Less than 5ma

• Overall efficiency (Including charge controller) : 80%

• Light Output 175 lumens/W (Nominal)
